What eludes me is the discrepancy in the wire-bundle numbering: in the chart, the bundle numbers consist of four characters, whereas in the Wire List tables they consist of five characters, according to the file I just dispatched by email a few moments ago.

With reference to the file I forwarded (email) a few minutes ago, could you advise how the chart may be utilised for wire-tracing purposes?

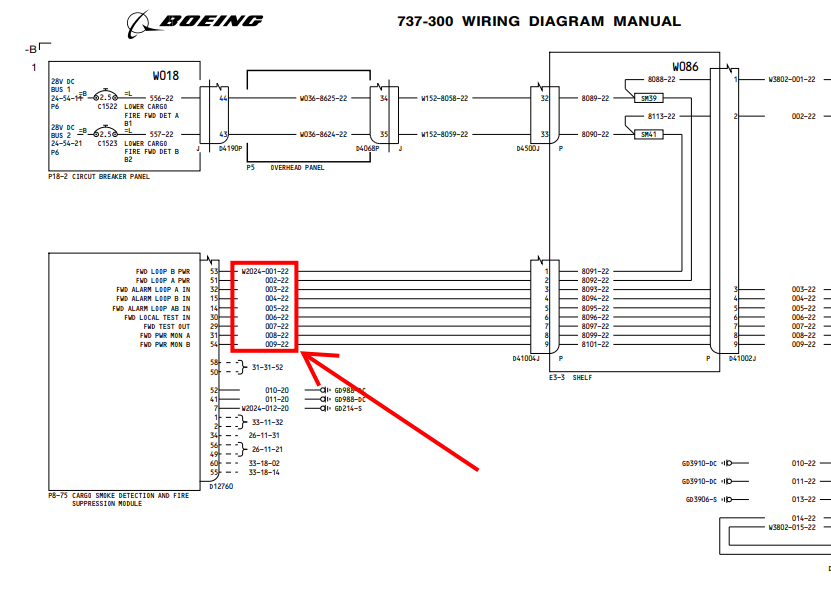

Could you please confirm the bundle designation assigned to the conductors identified by the red rectangle and arrow in the attached 737-300 wiring diagram, and indicate the location through which these conductors are routed?




Could you explain the rationale and methodology behind performing an ELT test within a radio-frequency (RF) shielded environment? Does this requirement imply that the entire test chamber, as well as the operator conducting the procedure, must be shielded?

Could you clarify the meaning of the symbols depicted in the attached file: one comprising two parallel lines intersected by a diagonal stroke, and the other comprising two parallel lines without the stroke?





According to the attached schematics, the failure of which specific diode within Generator Control Unit 1 would result in a complete loss of power from Generator No. 1?
