4 months 3 weeks ago - 4 months 3 weeks ago #627 by Mark D Francis
767-300 that would not accept external power.

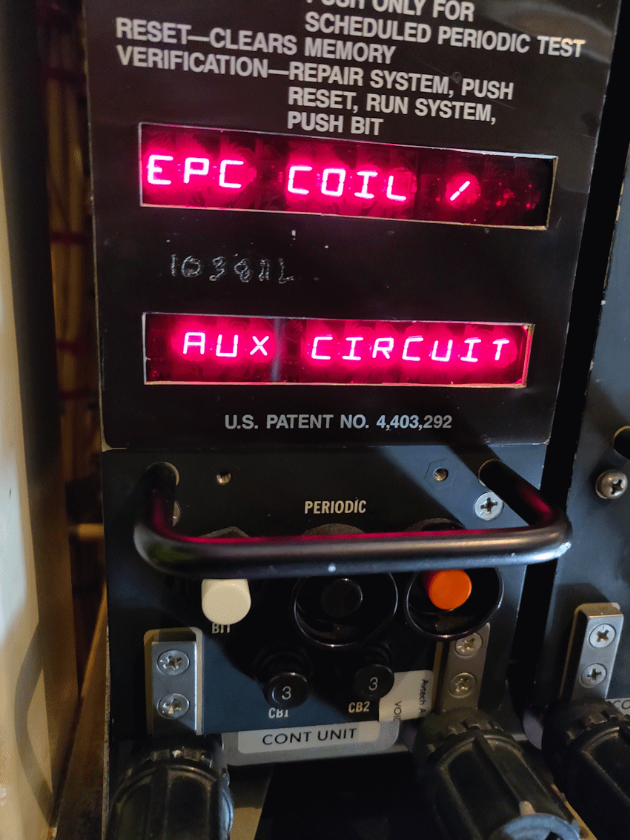

Fault message on front of BPCU (Bus Power Control Unit).



This message is associated with the BPCU seeing a valid interlock circuit or a external power contactor coil problem. The interlock deals with pins E&F of the external power GPU plug. The BPCU must see continuity between these pins before allowing power to the aircraft (Reference: https://rotate.aero/forum/safety-aware/265-external-power-plug#452 . As far as the contactor coil, if the BPCU supplies a signal to close the contactor, but it does not close, it will log the fault shown above.

Pins E&F can be checked directly at the plug.



In the case of a 767 (most likely other types of Boeing aircraft), two fuses are placed inline from pins E&F of the external power receptacle to the BPCU. I found a broken solder joint on one of the fuses.

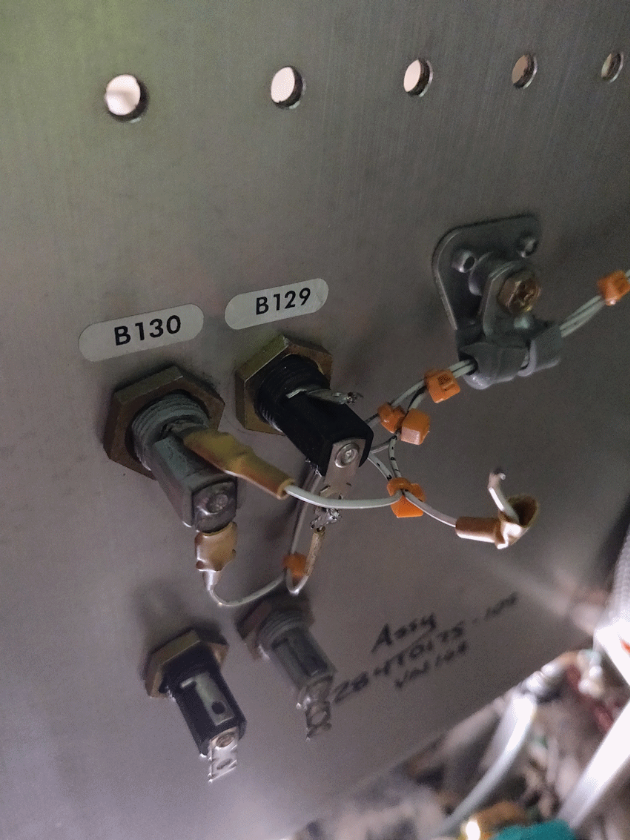

The broken wire was spotted almost immediately upon opening the P34 panel. I still wanted to verify operation of the external power contactor. The BPCU supplies approximately 28VDC to close the contactor. I tried substituting my "easy 28" https://rotate.aero/forum/test-equipment/246-easy-28#409 , but because the contactor is so large...... there wasn't enough power from the batteries to close it.

I brought a DC Power Supply out to the aircraft and activated the contactor with it. I did this directly at the contactor and just to verify the BPCU to contactor wiring was good, I fed this voltage from the BPCU rack plug also.

As a note..... the BPCU has a small transformer rectifier that converts the 3 phase AC external power input to approximately 28VDC (I found 25.3 on the unit I was working with). It uses this DC voltage to control the contactor. The BPCU verifies voltage, phasing, and frequency of the supplied external power. If all of these are within tolerance, it will close the contactor and supply power to the aircraft.
Attachments:
Last edit: 4 months 3 weeks ago by Mark D Francis.

Please Log in or Create an account to join the conversation.

More
4 months 2 weeks ago #633 by Mike Forti
Make sure I understand this- pins E & F on the aircraft side won't be a completed circuit until the plug is inserted and the contractor closes.

Please Log in or Create an account to join the conversation.

More
4 months 2 weeks ago #635 by Mark D Francis

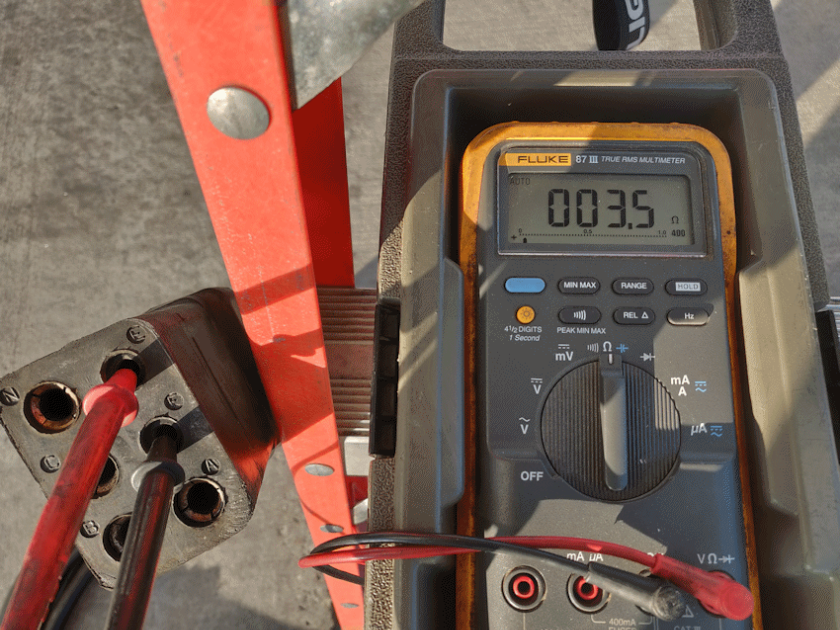

The GPU doesn't have to be making power for there to be continuity on E & F of the plug. The image above was on a non-running GPU.

You've got me thinking though. Why does a GPU throw a E&F code when it's not pushed in all the way?

I'm going to have to put a voltmeter on those fuses on a externally powered aircraft. I'm kinda thinking I'm going to find 28VDC on one.

Please Log in or Create an account to join the conversation.

More
4 months 2 weeks ago #641 by Mike Forti
Great stuff!!!!
