5 months 1 week ago - 5 months 1 week ago #535 by Mark
ATA 33-40, Logo Lights was created by Mark

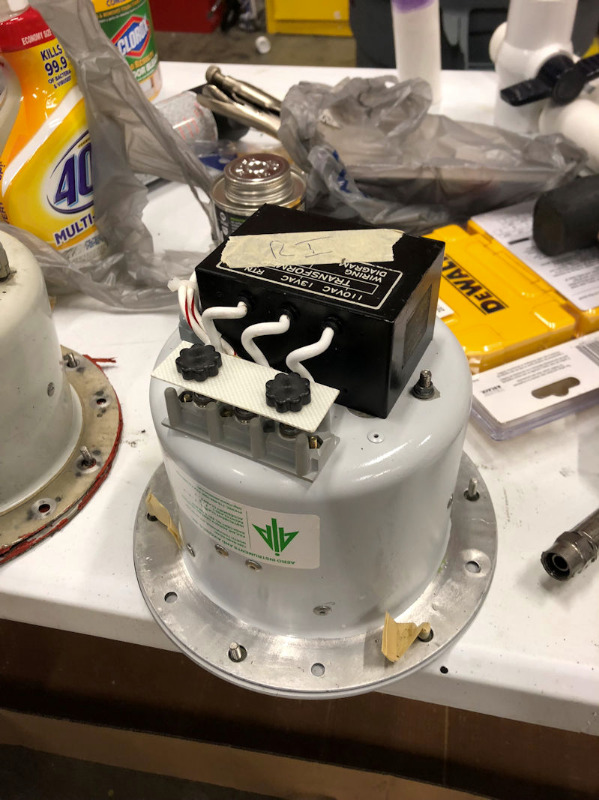

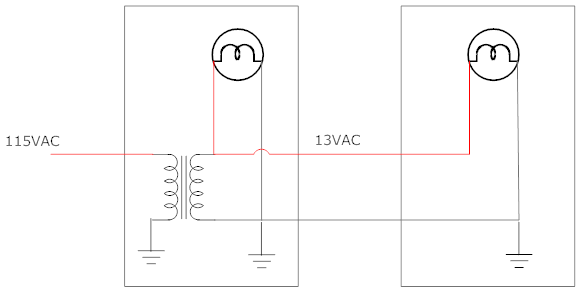

There are two logo lights installed on each side of the horizontal stabilizer. The inner light has a step-down transformer incorporated in the assembly. This transformer takes the 115VAC input down to 13VAC which is used by the lights themselves.



The outer light is wired across to the inner assembly's transformer for its 13VAC power.



Attachments:
Last edit: 5 months 1 week ago by Mark.

Please Log in or Create an account to join the conversation.

More
5 months 1 week ago - 5 months 1 week ago #536 by Mark
Replied by Mark on topic ATA 33-40, Logo Lights

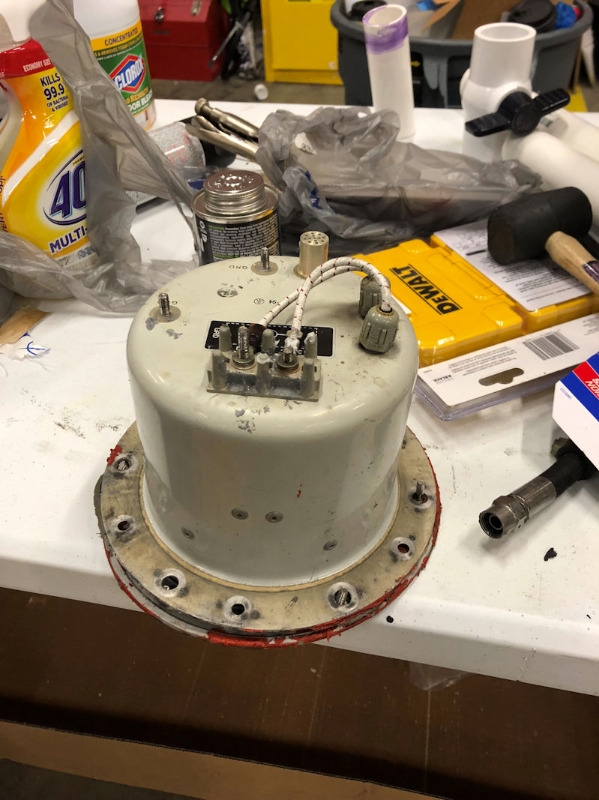

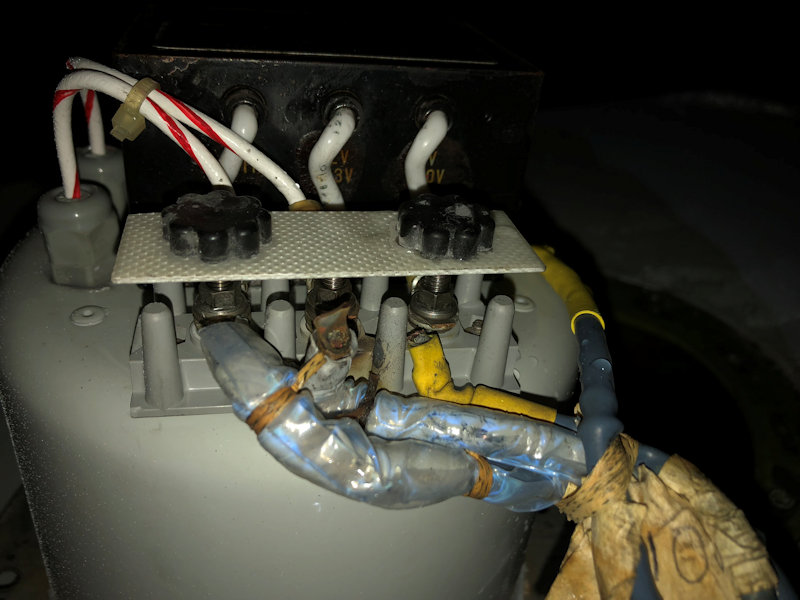

Both lights will be inop if you pull the inner assembly and see "this".

Attachments:
Last edit: 5 months 1 week ago by Mark.

Please Log in or Create an account to join the conversation.

More
4 months 5 hours ago #544 by Mike Forti
Replied by Mike Forti on topic ATA 33-40, Logo Lights
Well, we have logo lights on the 747-8s, and I'm sure they will find that!!
