4 years 11 months ago - 4 years 11 months ago #628 by Mark

Wiring Meet Hy-Lok was created by Mark

Chasing down a missing A/C phase wire for a cargo door actuator.

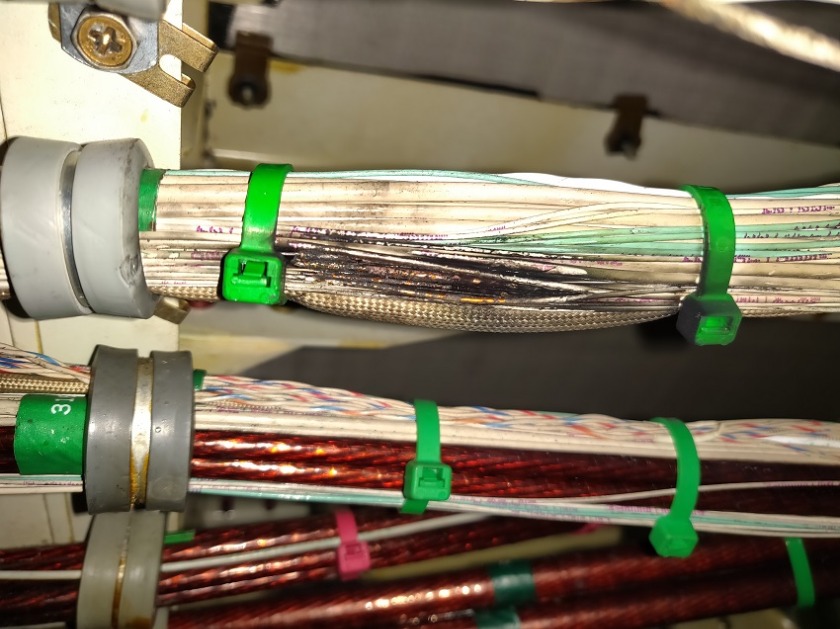

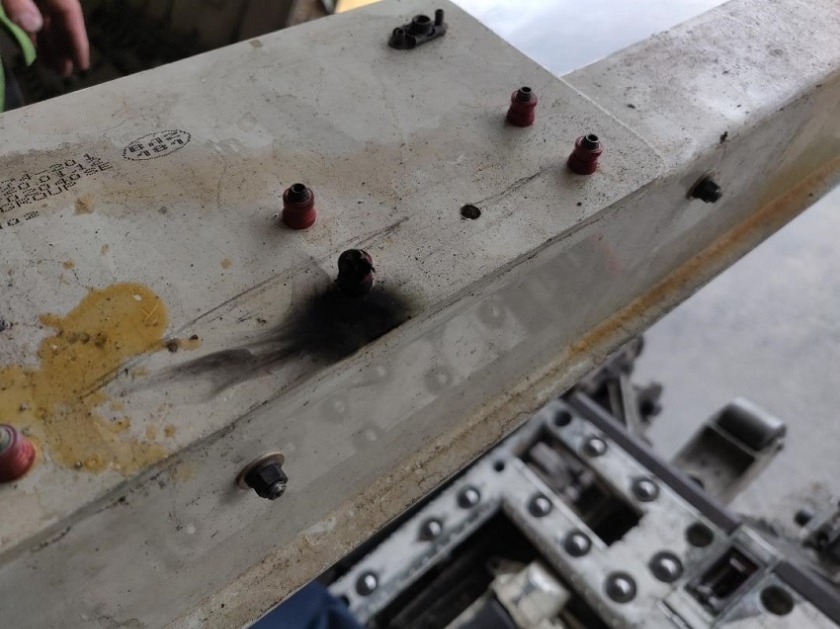

Found it! Image after wires wiped down. Initially, things didn't look so promising. Our wire was only one open.

The majority of this wiring was Kapton . It's NOT a good thing when one shorts out.

Last edit: 4 years 11 months ago by Mark.

Please Log in or Create an account to join the conversation.

• jake ounce
•
• Offline
• Premium Member
•

Less More

• Posts: 133
• Thank you received: 0

4 years 11 months ago #629 by jake ounce

Replied by jake ounce on topic Wiring Meet Hy-Lok

At least with the older aircraft, circuit beakers didn't typically pop with Kapton wiring. AirTran's FWD cargo pit got engulfed when ground flood light wiring overheated, not popping the breaker, and the fire happened. This was after the Value Jet crash.

Please Log in or Create an account to join the conversation.

• Mark
• Topic Author
• Offline
• Administrator
•

Less More

• Posts: 972
• Thank you received: 144

4 years 11 months ago #630 by Mark

Replied by Mark on topic Wiring Meet Hy-Lok

This was "A" phase 115VAC on a 20 gauge wire. The breaker did not pop. It sure looked like there was enough current to pop it.

Scary shit though.
