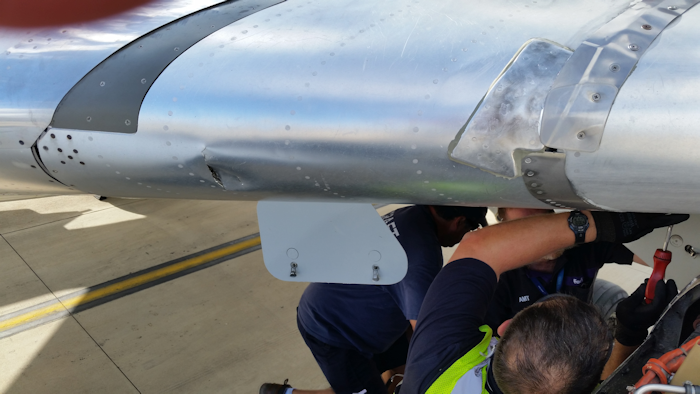

Road trip to San Antonio. MD-10-10 which had a bleed air duct in the #1 pylon split open. One of the pylon blow-out panels must of knife-edged itself into the pylon notch-flap (really a slat and I'm sure there's an official name for it, but I'm to lazy to look it up).

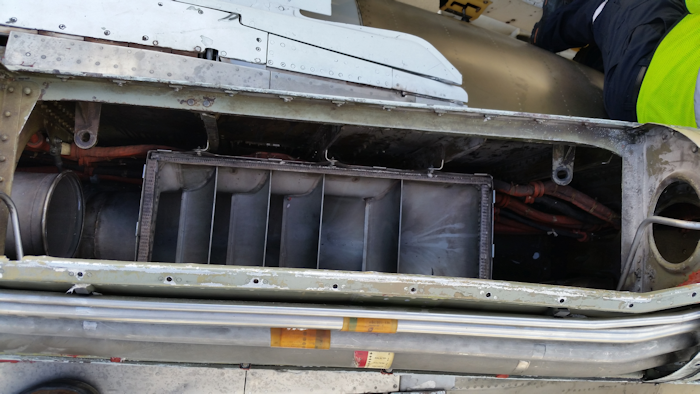

Anyway..... the slat, the pre-cooler, and the duct needed to be replaced. Did it turn into a cluster? Hell yes it did!!

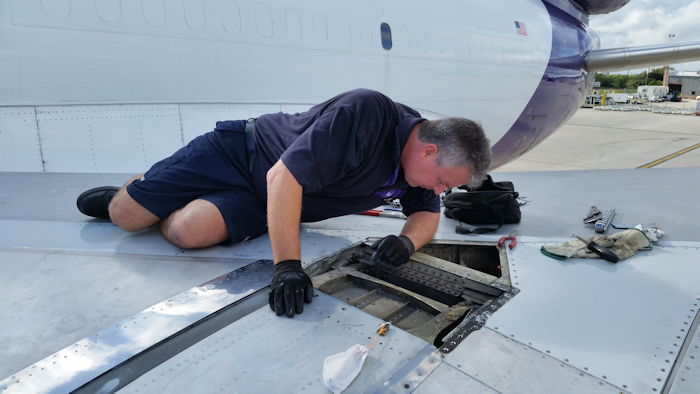

Don Harmon (IAH MX)

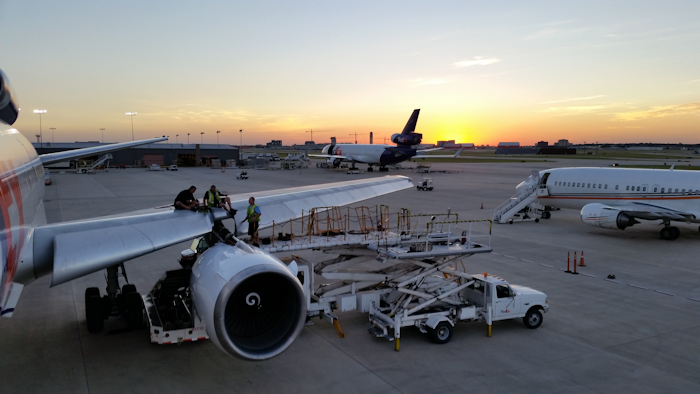

Sunset shot from left entry door.
Yes.... that "is" a belt-loader under the inboard pylon. Is it approved? Well..... not really, but ya-gota do what ya-gota do to get the job done.
