Retractable Landing light motor

• dynamics
• Topic Author
• Offline
• Elite Member
•

Less More

• Posts: 299
• Thank you received: 0

11 months 2 weeks ago #1375 by dynamics

Retractable Landing light motor was created by dynamics

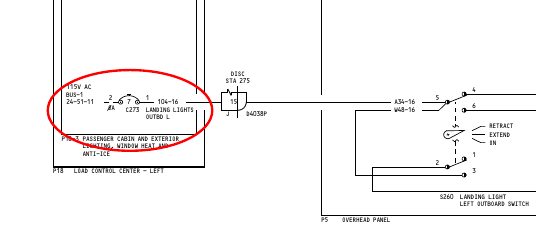

Regarding the diagram I have just sent, is the motor 3 phase 400hz?

Please Log in or Create an account to join the conversation.

• Mark
•
• Away
• Administrator
•

Less More

• Posts: 972
• Thank you received: 144

11 months 1 week ago - 11 months 1 week ago #1376 by Mark

Replied by Mark on topic Retractable Landing light motor

Single phase ("A" phase) motor. The two sets of windings you're looking at are for direction.













Last edit: 11 months 1 week ago by Mark.

Please Log in or Create an account to join the conversation.

• dynamics
• Topic Author
• Offline
• Elite Member
•

Less More

• Posts: 299
• Thank you received: 0

11 months 1 week ago #1377 by dynamics

Replied by dynamics on topic Retractable Landing light motor

However it is supplied from GEN2 AC bus that I believe is three phase, by the way I have not found any three phase to single phase transformer in the corresponding diagram

Please Log in or Create an account to join the conversation.

• Mark
•
• Away
• Administrator
•

Less More

• Posts: 972
• Thank you received: 144

11 months 1 week ago #1378 by Mark

Replied by Mark on topic Retractable Landing light motor

It's just using "one" phase out of the three. Regardless of the source.

The print doesn't show three wires coming from the breaker..... only one.

The following user(s) said Thank You: dynamics

Please Log in or Create an account to join the conversation.

• dynamics
• Topic Author
• Offline
• Elite Member
•

Less More

• Posts: 299
• Thank you received: 0

11 months 1 week ago #1379 by dynamics

Replied by dynamics on topic Retractable Landing light motor

Is the number of C/B's the only indicator of number of phases of power supply to any element in the diagram?

Please Log in or Create an account to join the conversation.
