Constant speed drive&AC Generator Adapter

More
11 months 2 weeks ago #991 by dynamics
Constant speed drive&AC Generator Adapter was created by dynamics
Mark, would you mind explaining how the CSD&GEN Adapter (P/N:F70333-24 or F70333-25) which is produced by Boeing is used for removing the generator?

Please Log in or Create an account to join the conversation.

More
11 months 2 weeks ago #992 by Mark
Replied by Mark on topic Constant speed drive&AC Generator Adapter
It's basically a transmission jack adapter. The CSD is heavy. The adapter is raised into place by a hand/foot pump vertical jack. The adapter is shaped in such a way as to match the contour of the CSD. A large strap is used to hold the CSD to the adapter. Once finally secured..... the CSD can be pulled straight back from the gearbox. Same way going back in with the replacement unit.








The following user(s) said Thank You: dynamics

Please Log in or Create an account to join the conversation.

More
11 months 2 weeks ago #993 by dynamics
Replied by dynamics on topic Constant speed drive&AC Generator Adapter
Would you mind giving me an schematics or picture of the CSD&GEN Adapter?

Please Log in or Create an account to join the conversation.

More
11 months 1 week ago #1007 by dynamics
Replied by dynamics on topic Constant speed drive&AC Generator Adapter
Would you mind giving me a picture or schematics of SPL-9728

Please Log in or Create an account to join the conversation.

More

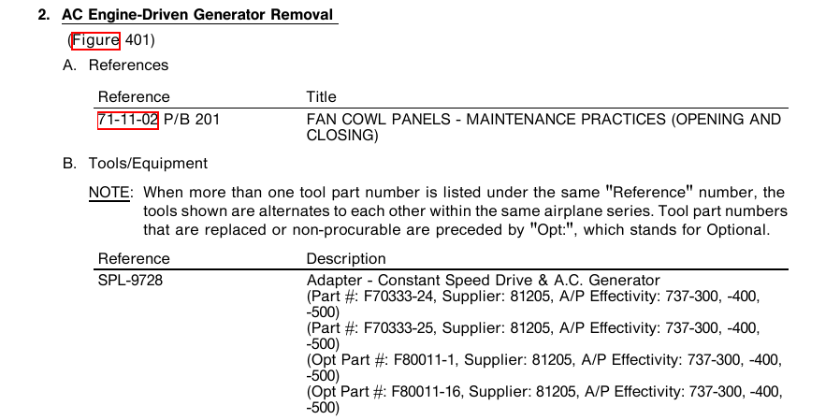

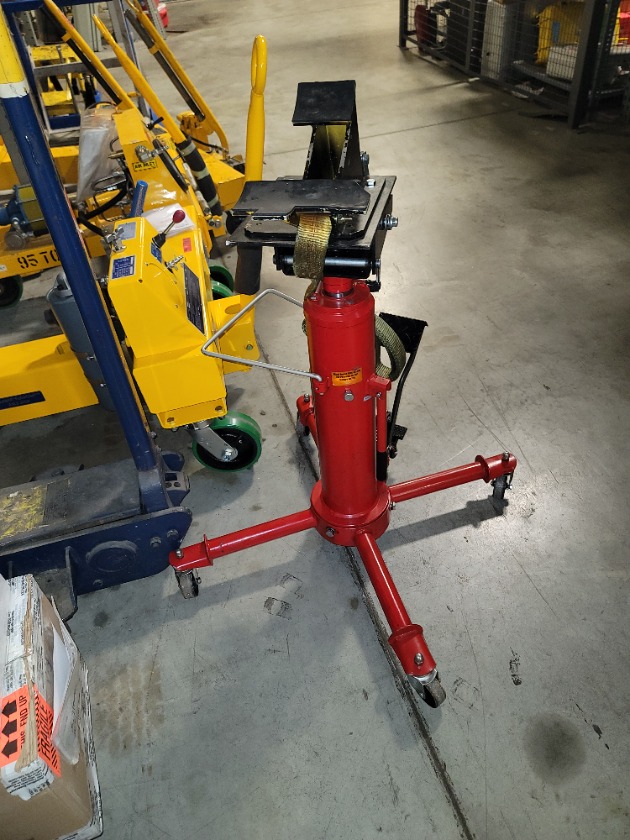

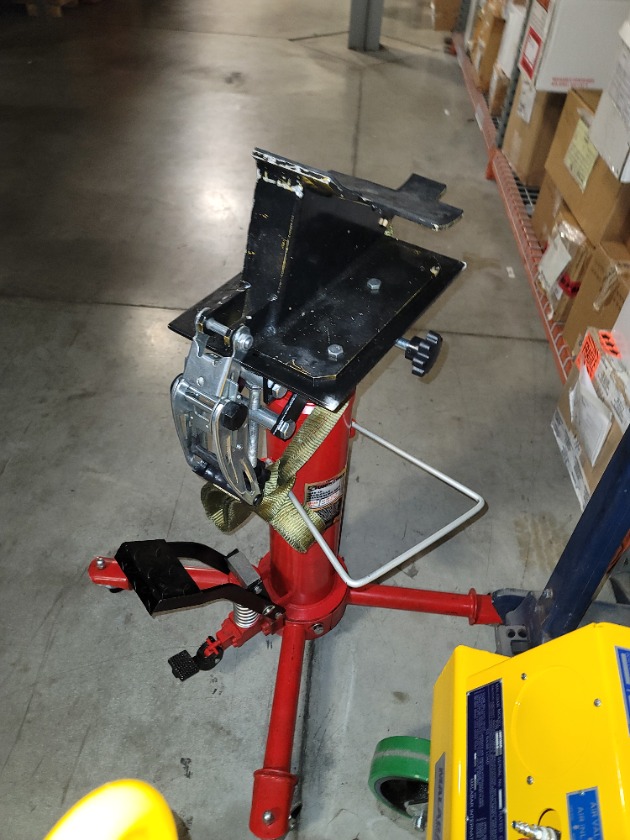

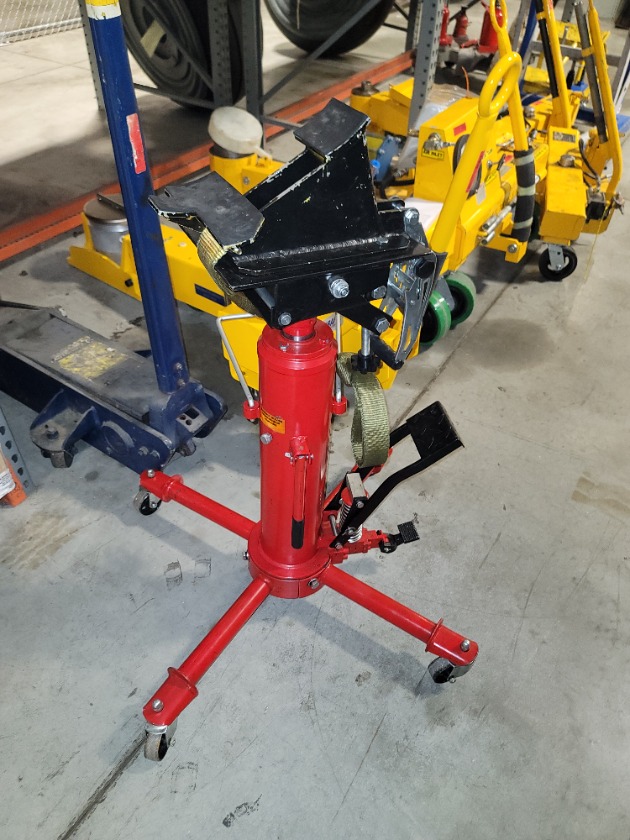

11 months 1 week ago #1009 by Mark
Replied by Mark on topic Constant speed drive&AC Generator Adapter










The following user(s) said Thank You: dynamics
