Topic-icon ATA 28-42, Fuel Stick

More
5 years 3 months ago - 5 years 3 months ago #399 by
ATA 28-42, Fuel Stick was created by
The replacement of a fuel measuring stick on a McDonnell Douglas aircraft is quite easy. Best of all...... it's completely dry.

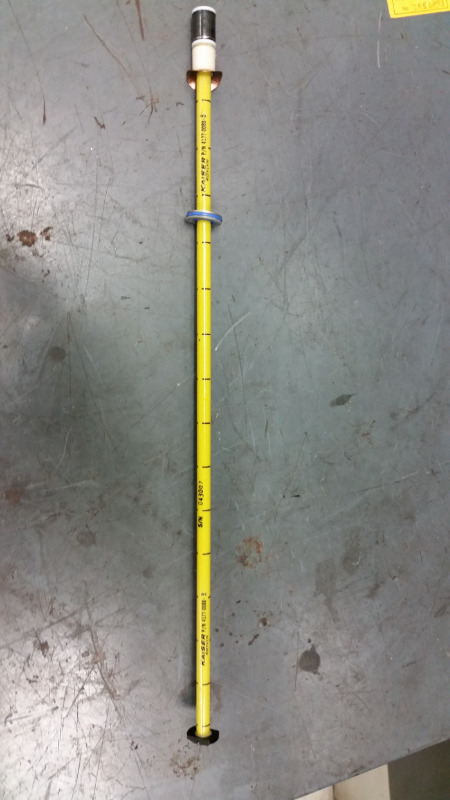

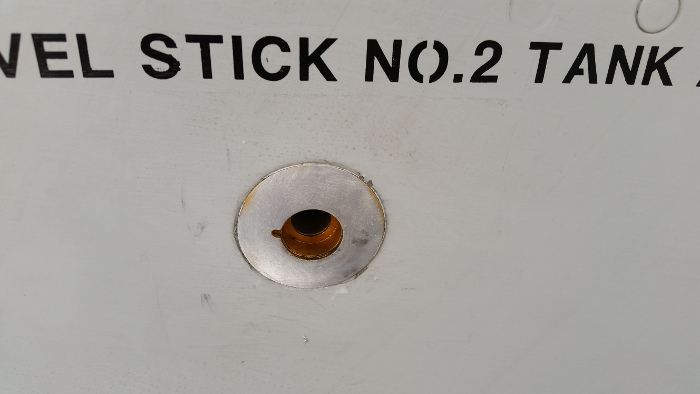

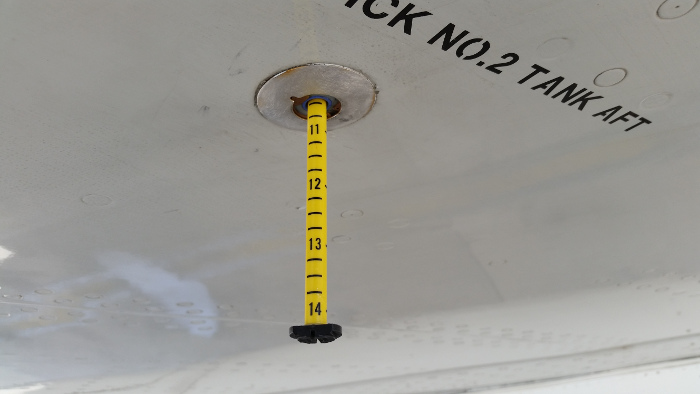

The stick sits inside a sealed tube. The magnet on the tip of the stick is acted upon by a float that rides up/down around the tube.



Replacement of the stick takes less than five minutes.

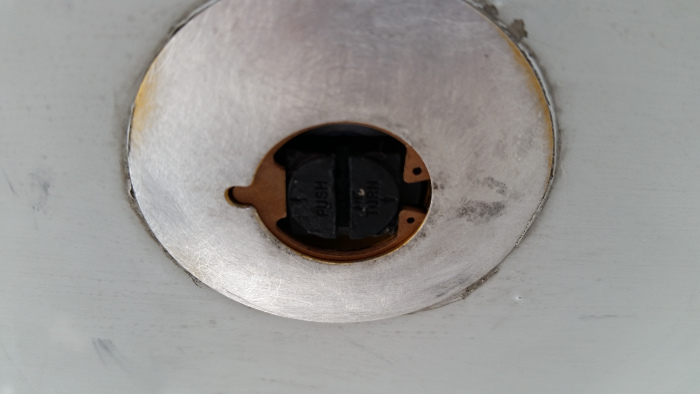

A simple snap ring holds the assembly in place. A pocket screwdriver was all that was needed to snap this ring in.



MD-10-10 AMM 28-42-01-2
Attachments:
Last edit: 5 years 3 months ago by .

Please Log in or Create an account to join the conversation.

More
4 years 11 months ago #440 by
Replied by on topic ATA 28-42, Fuel Stick
I've seen the tail tank show 800lbs when it was empty, and when I check the stick-clunk!!

Please Log in or Create an account to join the conversation.

More
4 years 10 months ago #443 by
Replied by on topic ATA 28-42, Fuel Stick
In MD11 school this week. Learning all kinds of things!!

Please Log in or Create an account to join the conversation.

More
4 years 10 months ago #444 by
Replied by on topic ATA 28-42, Fuel Stick
Last of its breed. Maybe a couple in Europe. FedEx and UPS...... that's it.
