P50 Rack Card Connector

More
10 months 2 weeks ago - 10 months 2 weeks ago #1238 by Mark
P50 Rack Card Connector was created by Mark
Maintenance Control request to change one of the card connectors in the P50 panel.








Removed.....

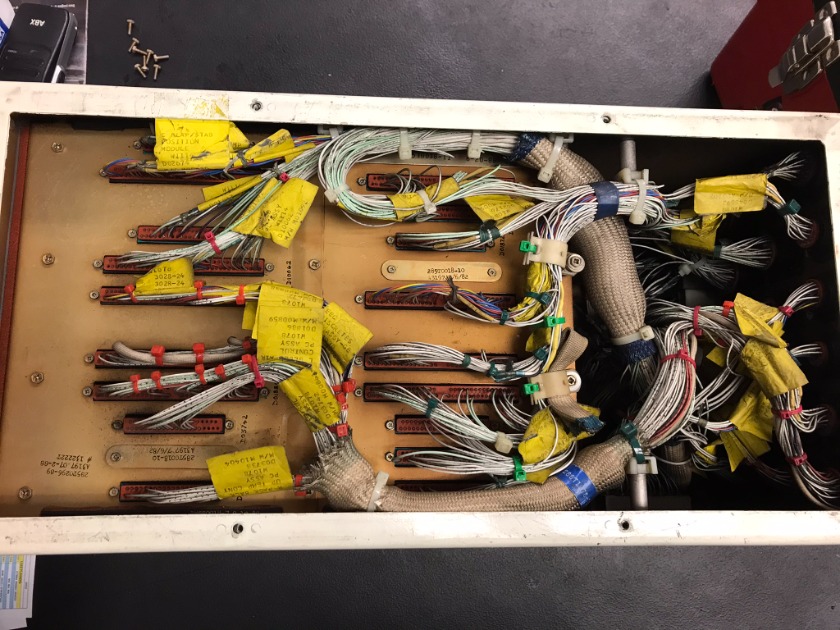

Back cover off.....

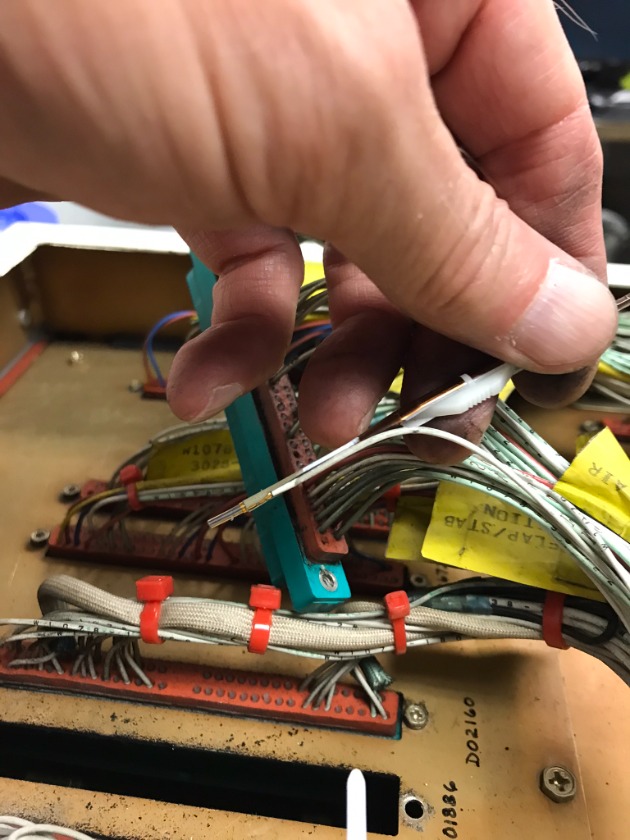

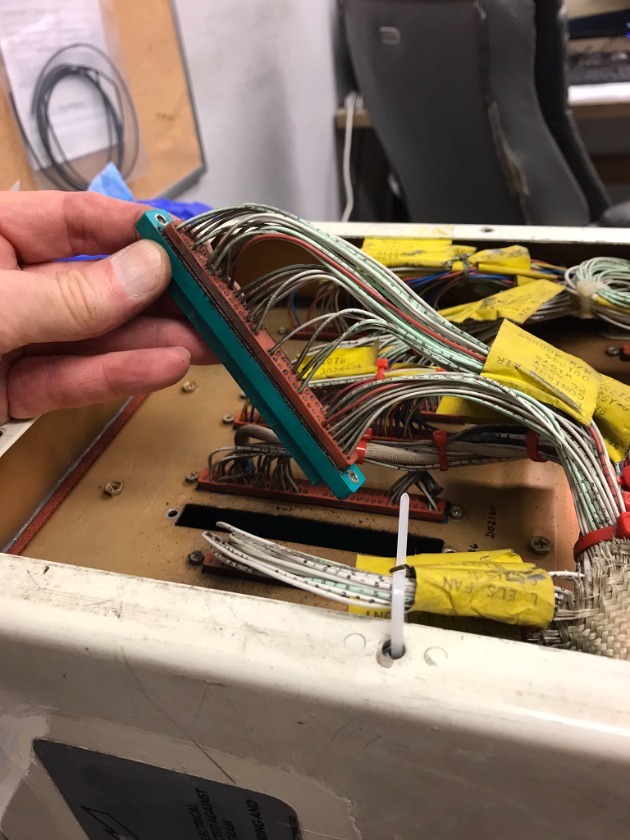

Fortunately, the connector slides out the back side.





The $120+ dollar tool called out in the Standard Wiring Practices Manual.....

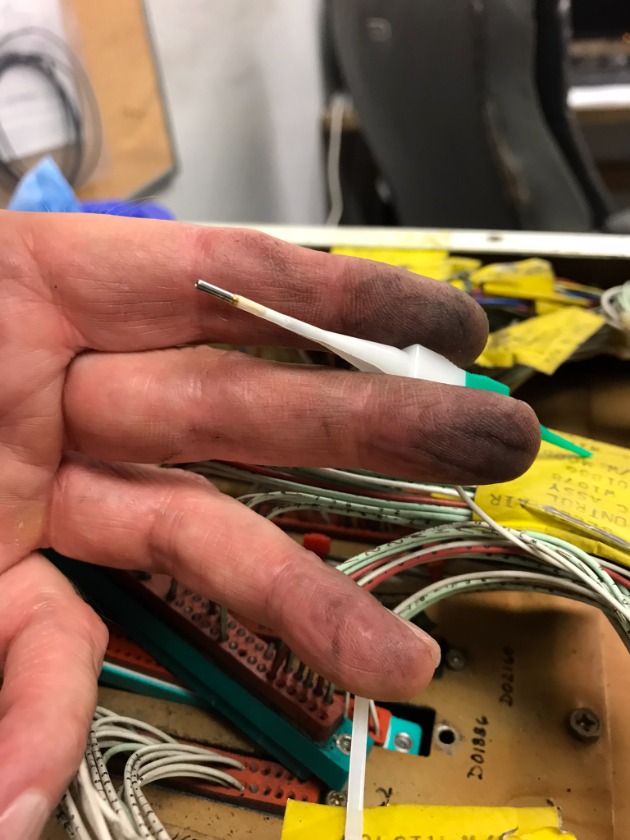

vs. the standard green/white plastic....





(I won't be spending any money on the expensive tool.)
