ATA 30-41, DV Window Resistance

• Mark
• Topic Author
• Offline
• Administrator
•

Less More

• Posts: 1067
• Thank you received: 184

5 years 1 month ago #715 by Mark

ATA 30-41, DV Window Resistance was created by Mark

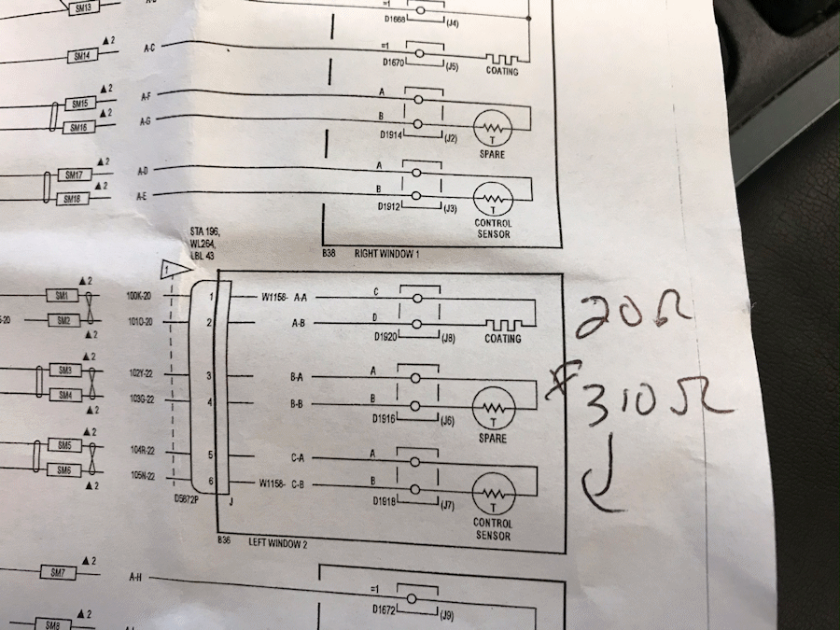

Around 310 ohms for the sensors and 20 for the heater coil....

Please Log in or Create an account to join the conversation.

• Mark
• Topic Author
• Offline
• Administrator
•

Less More

• Posts: 1067
• Thank you received: 184

1 year 8 months ago #1315 by Mark

Replied by Mark on topic ATA 30-41, DV Window Resistance

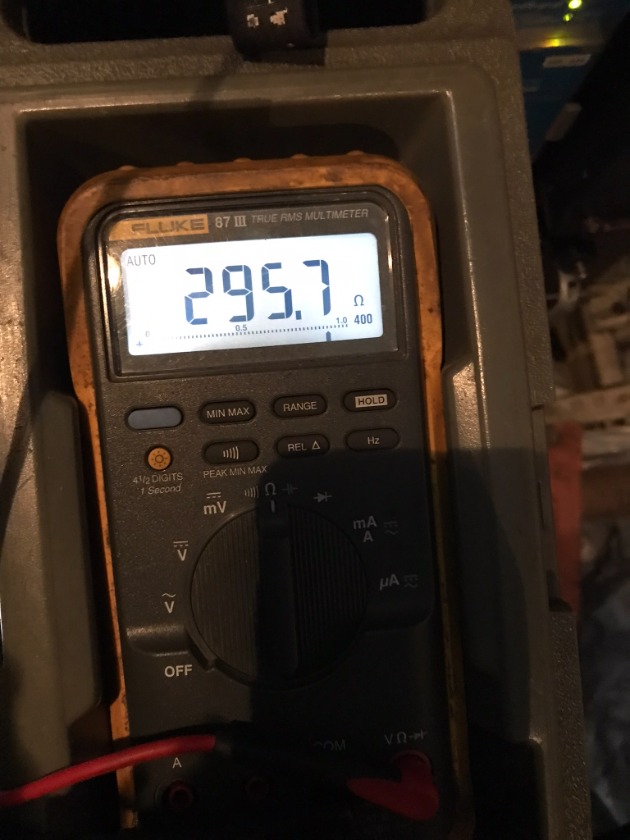

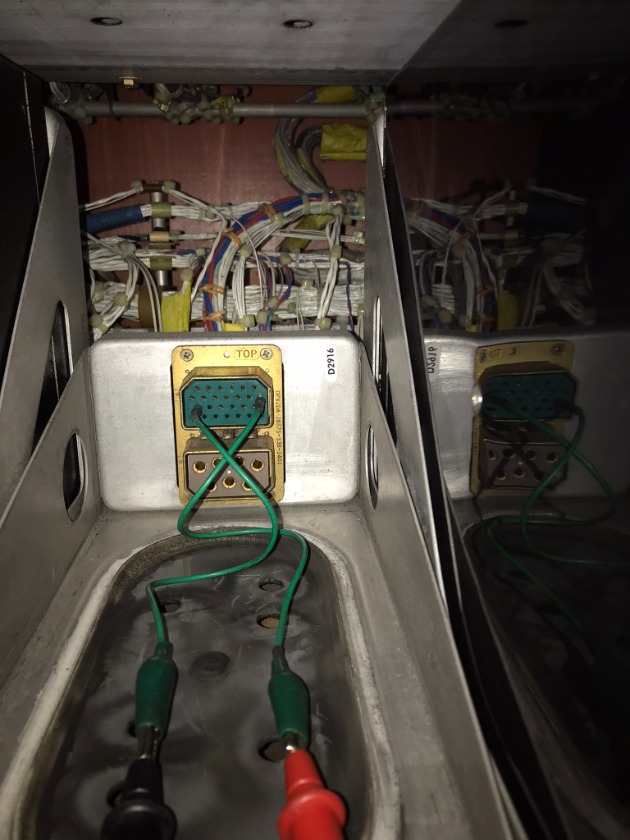

Had 295 Ohms on last DV sensor resistance check.
