757/767 APU Troubleshooting Manual

• Mark
• Topic Author
• Online
• Administrator
•

Less More

• Posts: 1023
• Thank you received: 162

5 years 1 week ago #675 by Mark

757/767 APU Troubleshooting Manual was created by Mark

This manual will not be updated. It can be downloaded.

Please Log in or Create an account to join the conversation.

• Mark
• Topic Author
• Online
• Administrator
•

Less More

• Posts: 1023
• Thank you received: 162

1 year 9 months ago #1157 by Mark

Replied by Mark on topic 757/767 APU Troubleshooting Manual









Please Log in or Create an account to join the conversation.

• Mark
• Topic Author
• Online
• Administrator
•

Less More

• Posts: 1023
• Thank you received: 162

1 year 9 months ago - 1 year 9 months ago #1163 by Mark

Replied by Mark on topic 757/767 APU Troubleshooting Manual

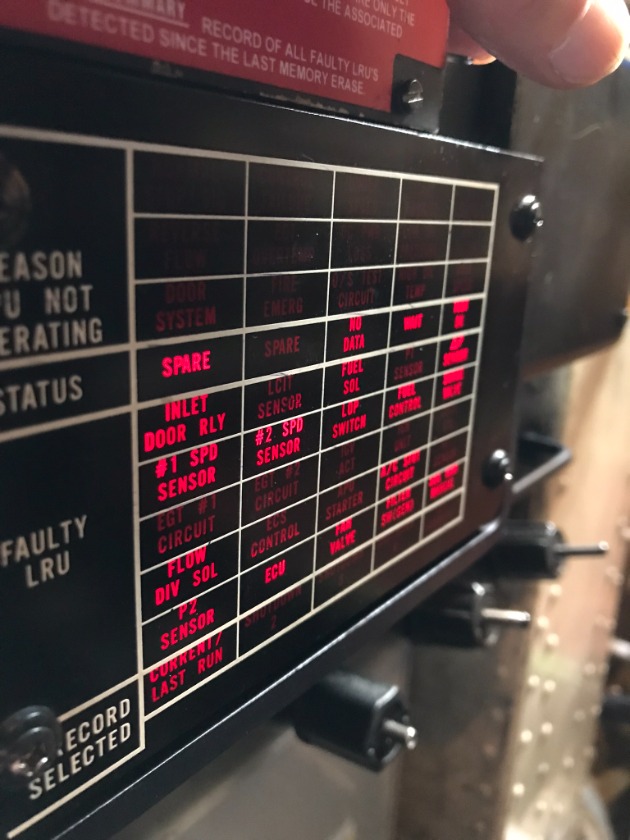

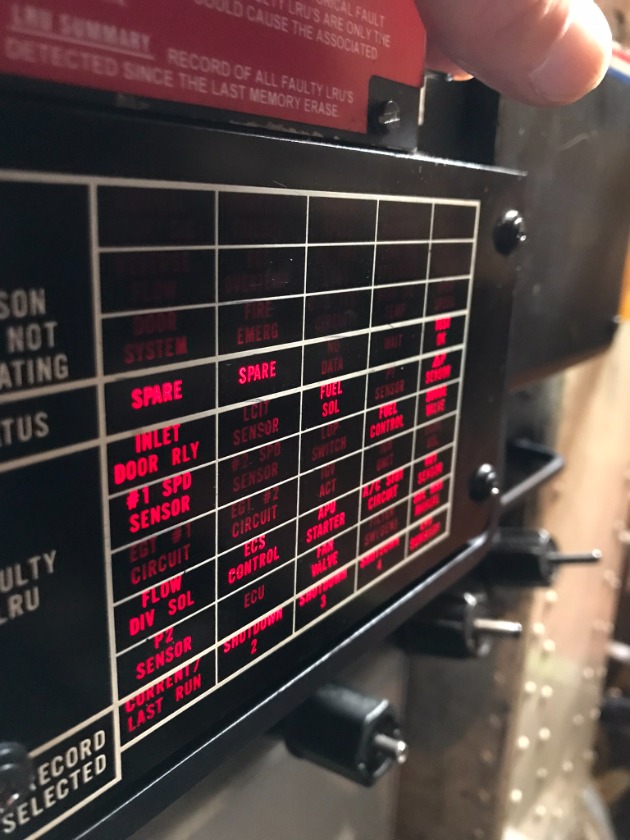

The APU ECU (Electronic Control Unit) mini-flag test is another tool for troubleshooting APU start or run functions.
To see the mini-flags..... press and hold "Lamp Test". After all rows have been sequenced, the code can be read sideways.

28







91







OK






Last edit: 1 year 9 months ago by Mark.

Please Log in or Create an account to join the conversation.

• edoradar
•
• Offline
• New Member
•

Less More

• Posts: 2
• Thank you received: 0

1 year 9 months ago - 1 year 9 months ago #1186 by edoradar

Replied by edoradar on topic 757/767 APU Troubleshooting Manual

Hello Mark, I am programming a maintenance simulation which would include also the Apu Ecu. Would you by chance be able to take a clear high res picture of the full unit straight from the front? With all lights off and all lights on would be the best, if not just off is fine. Thanks!

Last edit: 1 year 9 months ago by edoradar. Reason: Mistyping

Please Log in or Create an account to join the conversation.

• Mark
• Topic Author
• Online
• Administrator
•

Less More

• Posts: 1023
• Thank you received: 162

1 year 9 months ago #1187 by Mark

Replied by Mark on topic 757/767 APU Troubleshooting Manual

I'll be back at work tomorrow.
The lights test one row at a time. I'll have to send you a vid for that.

Please Log in or Create an account to join the conversation.

• edoradar
•
• Offline
• New Member
•

Less More

• Posts: 2
• Thank you received: 0

1 year 9 months ago - 1 year 9 months ago #1188 by edoradar

Replied by edoradar on topic 757/767 APU Troubleshooting Manual

Then just pic with all of em off is perfect. Just straight from the front and with whole computer visible would be perfect as then I’ll make the buttons interactive and make frames with the indicator legends to go over each indicator

Last edit: 1 year 9 months ago by edoradar.

Please Log in or Create an account to join the conversation.
