5 years 9 months ago - 5 years 9 months ago #36 by Mark D Francis

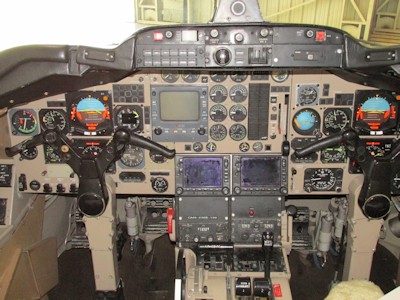

I recently started some work on a H125-700. It's an older aircraft, but still in good shape. I still get a goodly amount of work on analog aircraft, which I don't mind - one bit.

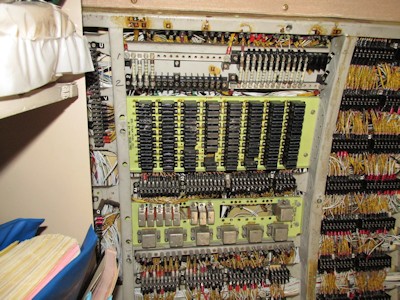

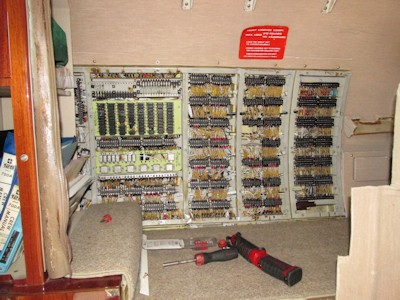

I am dealing with a capt's hand microphone problem. The print led me to look for some relays. I was quite surprised to open the right side wall behind the cockpit to find this...



How smart.... Locate all your relays and a majority of terminal strips in one central location. I don't recall anything like this on the -400 series or the -800 series. Someone can correct me if I'm wrong with that last statement.

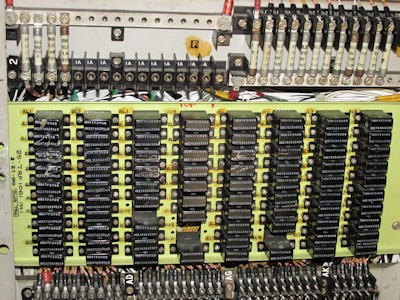

The relays I was concerned with were the smaller black ones on the top row. It's interesting (and somewhat confusing) has to how the communication system audio input is accomplished on this aircraft.
Attachments:
Last edit: 5 years 9 months ago by Mark D Francis.
