7 years 11 months ago - 7 years 11 months ago #396 by Mark

ATA 79-31, Oil Temperature vs Resistance Chart (Garrett TFE731) was created by Mark

Temp(C)---	Ohms
0	90.38
20	97.31
40	104.60
60	112.28
80	120.36
100	128.85
130	142.40

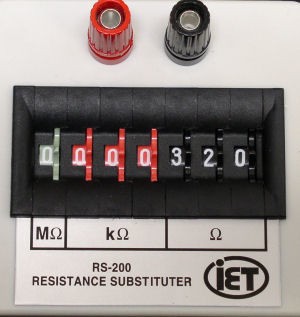

If simulation is needed for troubleshooting, a decade box should be your weapon of choice.

Cessna 550 Bravo AMM 79-31-02-2

Attachments:

•

Last edit: 7 years 11 months ago by Mark.
