ATA 33-10, GIV Pilot's Console Flood
9 years 8 months ago - 9 years 8 months ago #83
by Mark
$700 for a bulb that didn't fix the problem of no console light.

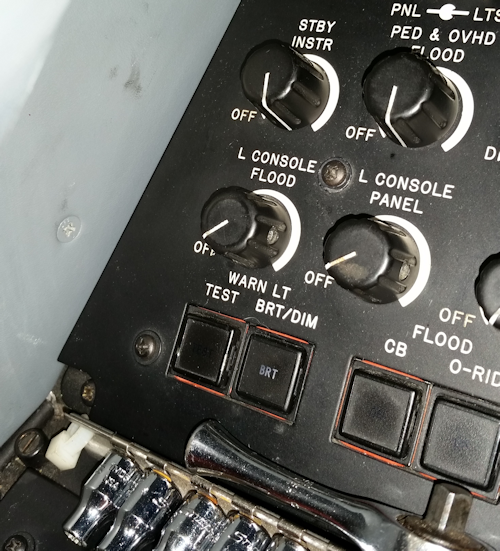

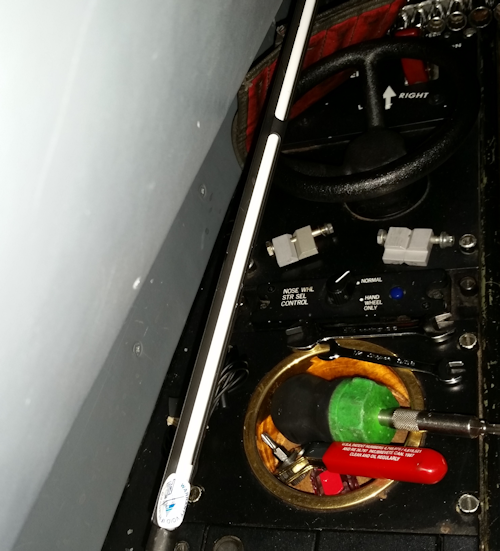

The inverter is located outboard of the Captain's left rudder peddle (right peddle for F/O's). And yes........ the seat has gota come out.

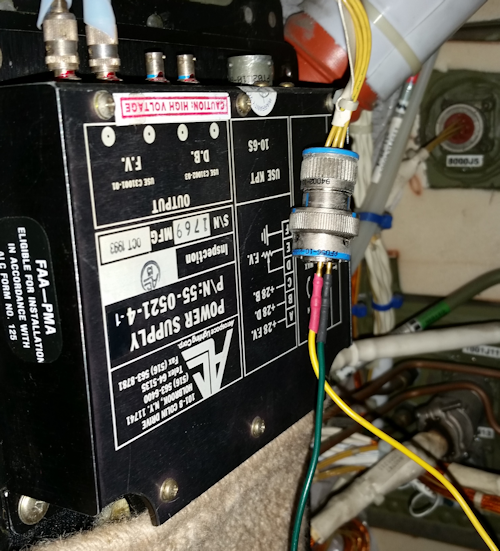

Two power pins on A and C, which read 28VDC.

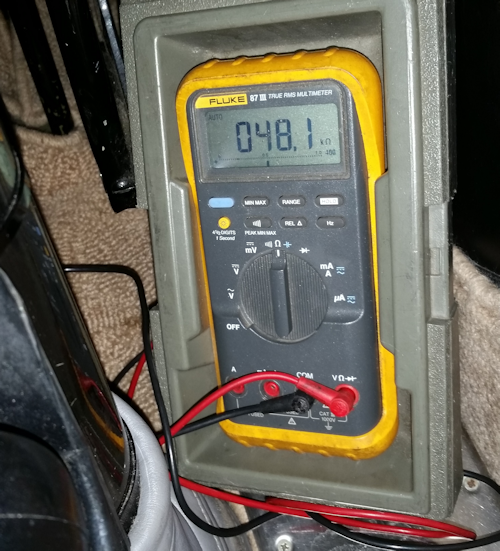

D and E are for the control potentiometer. 48.1K ohms full CCW, 1.2 ohms full CW.
Pin F is ground.
Replacement inverter corrected problem.
GIV ATA 33-10-00
WDM 33-12-00
IPC 33-10-00 Figure 1
ATA 33-10, GIV Pilot's Console Flood was created by Mark
$700 for a bulb that didn't fix the problem of no console light.
The inverter is located outboard of the Captain's left rudder peddle (right peddle for F/O's). And yes........ the seat has gota come out.
Two power pins on A and C, which read 28VDC.
D and E are for the control potentiometer. 48.1K ohms full CCW, 1.2 ohms full CW.
Pin F is ground.
Replacement inverter corrected problem.
GIV ATA 33-10-00
WDM 33-12-00
IPC 33-10-00 Figure 1
Last edit: 9 years 8 months ago by Mark.
