4 months 3 weeks ago #1320 by dynamics

Wiring Diagram Equipment was created by dynamics

What does "Vendor Furnished Equipment" mean in wiring diagram symbols?

Please Log in or Create an account to join the conversation.

• Mark
•
• Online
• Administrator
•

Less More

• Posts: 893
• Thank you received: 108

4 months 3 weeks ago #1321 by Mark

Replied by Mark on topic Wiring Diagram Equipment

Can you give me an example?

Please Log in or Create an account to join the conversation.

• dynamics
• Topic Author
• Offline
• Elite Member
•

Less More

• Posts: 257
• Thank you received: 0

4 months 3 weeks ago #1322 by dynamics

Replied by dynamics on topic Wiring Diagram Equipment

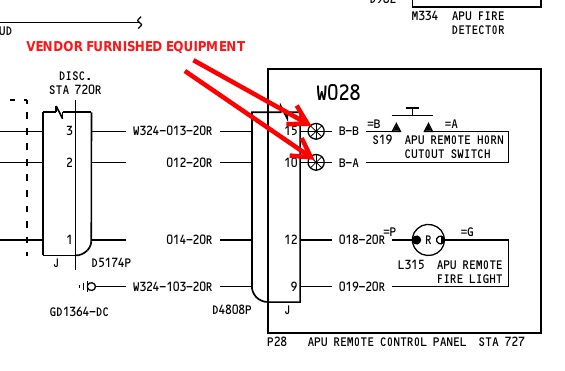

I sent an email with two pages of the wdm and IPC attached. I believe the reset switch is at the point that vendor furnished equipment symbol is indicated on WDM, am I correct?

Please Log in or Create an account to join the conversation.

• Mark
•
• Online
• Administrator
•

Less More

• Posts: 893
• Thank you received: 108

4 months 2 weeks ago #1323 by Mark

Replied by Mark on topic Wiring Diagram Equipment

Those are Butt Splices. Either  environmental  or  not.

The "vendor" in this case would be your airline.








The following user(s) said Thank You: dynamics

Please Log in or Create an account to join the conversation.
